TTM Series

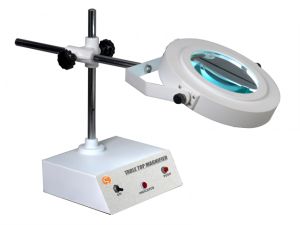

TTM (I) Microscope
TTM (II) Microscope
TTM (III) Microscope
| Model | TTM (i) | TTM (ii) | TTM (iii) |
|---|---|---|---|
| Magnification | 3.5x | 3.5x | 7x |
| Illumination | 22 watt Circular Fluorescent Tube Dia. 216mm | ||
| Outer Ring Diameter | 220 mm | ||
| Lens Diameter | 148mm | ||
| Effective Lens Diameter | 135mm | ||
| Maximum Height | 380mm | 580mm | 390mm |
| Vertical Movement | 210mm | NA | 210mm |
| Horizontal Movement | 250mm | 890mm | 250mm |
| Rotation | 360 deg | ||
| Lens Tilt | 90 deg | ||
| Stand Type | Table Top | C clamp | Table Top |
| Weight | 8.4 kgs | 5.0 kgs | 9.0 kgs |
| Packing Diameter | 57 x 29 x 33 cms | 68 x 31 x 38 cms | 55 x 34 x 33 cms |
