CABLE QUICKIE SVI-CQ Series
FEATURES
- Insulation Thickness Measurements Over Every Strand
- Minimum Insulation Thickness
- Average Insulation Thickness
- Maximum Insulation Thickness
- Cable Outer Diameter
- Inner Diameter
- Concentricity
- Insulator Area
- Eccentercity
- Ovality
- Circularity
- Trend Analysis
- Tolerance Settings
- Width Deviation Analysis
- Customized Report Generation
- EN 60811-1-1 Reports
- IS:10810 Reports
Overview

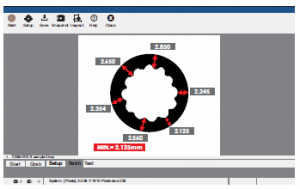

Comprehensive Software Desktop with all the measuring funtions just a click away. Simultaneously with the measurement you will have the result disply of the measurement in front of you on the software desktop.The core of product is the simple, visual part view window with convenient tool bars that define the measurement process.

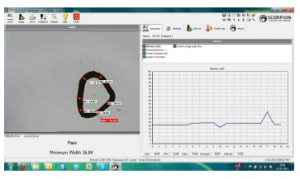

Easily Programmable
The software provides the flexibility to make new programs for special types of cable samples which are not part of standard software menu. The new software can be easily linked to the data management module for generating reports according to the any latest standard.
Integrated SPC

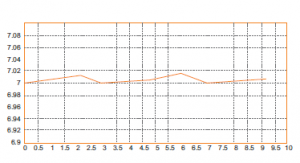

Inbuilt Trend Monitoring and Statistical Evaluation of any measured quantity is a prominent feature of the software.
This includes: The Trend Analysis of any measured variable with the different parts which is important to understand the variation in the batch being inspected.

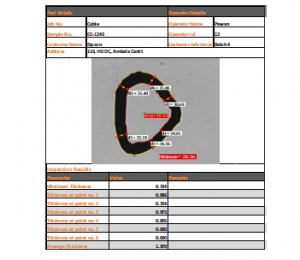

Report Generation
Fully customizable report format with color coded Pass/Fail for tolerance parts. Confirm to your ISO specifications and send data directly to an ASCII, Excel or any SPC program.
Width Deviation Analysis

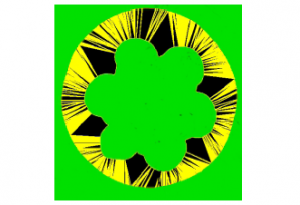

An advance feature to analyze the width at more than 1000 points on the sample helps in understanding the width variation in the complete sample.

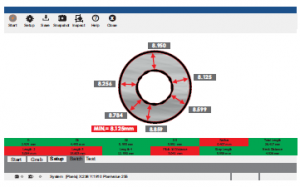

Color Coded Tolerances
The software provides the flexibility to make new programs for special types of cable samples which are not part of standard software menu. The new software can be easily linked to the data management module for generating reports according to the any latest standard.

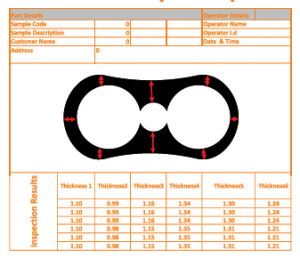

Batch Reporting
Reports of multiple cable samples are possible in one excel sheet which is very much helpful for comparative analysis.

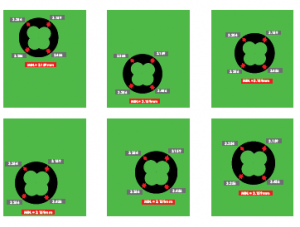

Auto Alignment
The location and the orientation of the part are automatically adjusted. There is no need of manual alignment or preparation of any jig or fixture to start the measurement. So keep the sample any where and press inspect button.

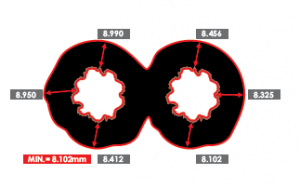

Profile Tolerance
The software provides the flexibility to make new programs for new parts which are not part of standard software menu. The new software can be easily linked to the data management module for generating reports according to the any latest standard.

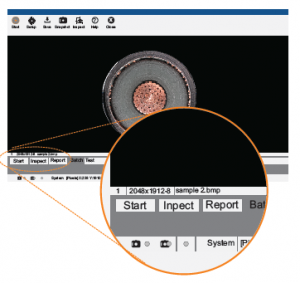

Three Step Inspection
STEP 1 : Start – Place the sample on the machine
STEP 2 : Inspect – Click inspect to get results
STEP 3 : Report – Click Report to get all results in excel or any other desired format.
