SCORPION Software
Software Desktop
Comprehensive Software Desktop with all the measuring functions just a click away. Simultaneously with the measurement you will have the result display of the measurement in front of you on the software desktop.
Auto Alignment
The location and the orientation of the path are automatically adjusted. There is no need of manual alignment or preparation of any jig or fixture to start the measurement.
Integrated SPC
Inbuilt Trend Monitoring and Statistical Evaluation of any measured quantity is a prominent feature of the software.
Report generation
Fully customizable report format with color coded Pass /Fail. Confirm to your ISO specifications and send data directly to an ASCII, Excel or any SPC program.
Easy to do Programming
The software provides the flexibility to make new programs for new parts which are not part of standard software menu. The new software can be easily linked to the data management module for generating reports according to the any latest standard.

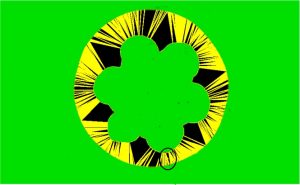

Deviation Analysis
An advance feature to analyze each of the 1000 points on the sample helps in understanding the variation in detail.
Construction Capabilities
Construction of mid-lines, bolt hole circle, mid-points, intersection of two lines etc. All 2D construction are possible in this software

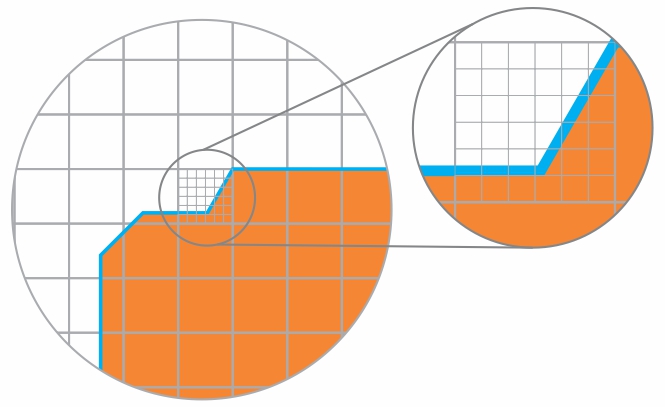

1/100 Pixel Image Processing
With Sub-pixel Image Processing you can measure by one hundredth or less of a pixel of the light receiving element.
DXF Overlay (CAD Interface)
The new DXF file import system allows for the display of DXF file as an overlay on the live video image. Translate and rotate of your DXF import for fit against the video image.
Results on Image
The graphical representation displays the results of measurement on the image which simplifies the process of identification of the measurements done.
Thread Analysis
Our Software is capable of thread measurements. It can measure most important elements like: major diameter, minor diameter, effective diameter, pitch diameter, pitch, thread angles.
Batch Programming
Inbuilt Trend Monitoring and Statistical Evaluation of any measured quantity is a prominent feature of the software.
Colour Measurement
Our software is capable for different types of colour measurements, colour percentage and colour analyzing.
Color Coded Tolerance
The software provides the result output in a colour coded format on the result bar. The red and green display helps easy identification of pass and fail features.
Compatibility with Pneumatic Control
Our software is compatible with Pneumatic control system, air control system and bin etc. with help of RS232 interface.
Dual Camera
The dual camera option helps in doing precise measurements in large field of view system resulting in high accuracy and repeatability along with more area for measurement.
Profile Tolerance
Profile deviation analysis is another important feature of the software with which you can find out the deviation in the actual part with the standard drawing.
